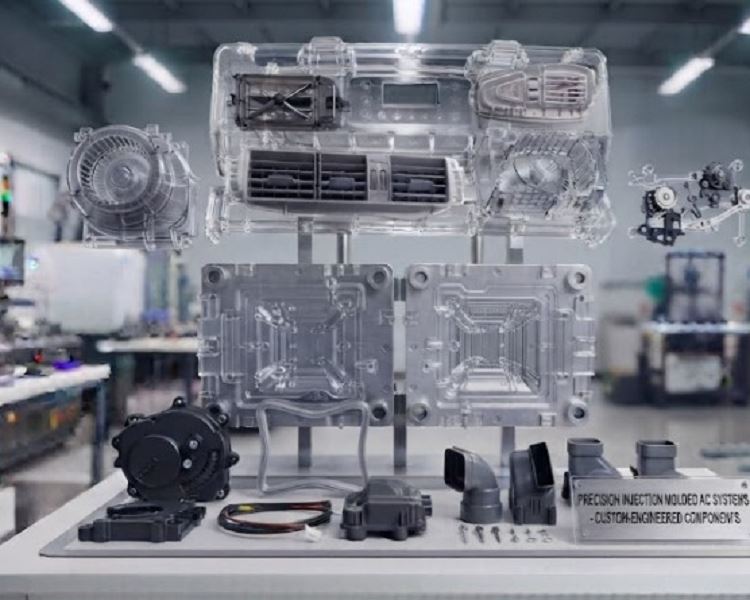

Product Overview
Custom-molded thermoplastic components designed for residential and commercial air conditioning units, heat pumps, and ventilation equipment. Utilizing multi-cavity injection molds and optimized cooling channels, we produce high-volume plastic parts with consistent structural geometry, clean surface textures, and stable mechanical properties.
Our comprehensive engineering and manufacturing scope covers indoor/outdoor unit housings, cross-flow fan wheels, axial blades, structural brackets, air guides, and electrical enclosures. We manage the entire manufacturing cycle-from initial 3D drawing review and mold flow analysis to tool fabrication, pilot runs, and mass production.
Core Technical Capabilities & Specifications
Dimensional Stability & Tolerances
To eliminate assembly misalignment, air leakage, and operational vibration in HVAC systems, dimensional repeatability is strictly controlled during mass production.
• Achievable Tolerance: Standard dimensional precision reaches +/-0.05mm to +/-0.10mm, depending on geometry and shrinkage rates.
• Process Control: Real-time monitoring of injection pressure, barrel temperature, and cooling cycle times to prevent warping and sink marks on large-area components.
Material Selection & Engineering Plastics
Materials are selected based on mechanical load, operating temperature, flame resistance, and UV exposure requirements:
• ABS (General Purpose & High-Impact): Used for indoor unit covers and decorative panels due to its balanced impact strength and surface finish.
• PC/ABS Alloys: Applied in electrical housings and control component mounts requiring higher thermal resistance and structural rigidity.
• PP (Polypropylene): Utilized for internal air ducts and moisture-prone components for its chemical resistance and low specific gravity.
• PA (Nylon / Polyamide): Selected for mechanical support brackets and gear components requiring high wear resistance.
• Flame-Retardant Grades (UL94 V-0 options): Specified for electrical enclosures to meet rigorous safety and electrical insulation standards.
Mold Engineering & Tooling
Tooling performance directly dictates part consistency and production efficiency. Our engineering workflow includes:
• Mold Flow Analysis: Simulation of polymer filling, weld line placement, and volumetric shrinkage before cutting steel.
• Tooling Construction: Use of precision CNC machining and EDM (Electrical Discharge Machining) on stable mold base steels (e.g., P20, 718H, or H13) to ensure long tool lifespans across large production batches.
Surface Finishing Options
Textures & Finishes: VDI/SPI standard mold texturing (matte or grain finishes), high-gloss polishing for aesthetic front panels, secondary pad printing, and laser marking.
Component Application Range
Housing & Enclosures
Indoor unit front panels, outdoor unit top covers, electronic control box covers, and decorative shells.
Air Management Parts
Air outlet louvers, directional air guides, internal air ducts, and sensor brackets.
Rotating & Fan Components
Cross-flow fan wheels, axial fan blades, and motor housing brackets balanced to minimize operational noise and vibration.
Structural Supports
Mounting plates, chassis frames, and internal partition boards.
Quality Control & Inspection Standards
Quality validation is integrated into every phase of production to ensure strict batch consistency and compliance with global standards (ISO 9001 / IATF 16949):
Incoming Raw Material: Verification of resin grade, melt flow index (MFI), and color masterbatch consistency against material data sheets.
First Article Inspection (FAI): Full dimensional measurement of trial-molded parts using CMM (Coordinate Measuring Machines) and digital optical projectors
Mass Production Audits: Regular on-line checks for flash, short shots, surface blemishes, and critical assembly dimensions prior to packaging.
Technical Data Summary
|
Parameter |
Specification |
|
Manufacturing Process |
Thermoplastic Injection Molding |
|
Common Materials |
ABS, PC/ABS, PP, PA, Flame-Retardant Engineering Resins |
|
Dimensional Tolerance |
+/-0.05mm – +/-0.10mm (Design Dependent) |
|
Machine Tonnage Range |
Configured for small precision parts to large housing components |
|
Surface Treatment |
VDI/SPI Texture, High-Gloss Polish, Matte, Pad Printing |
|
Quality Certifications |
ISO 9001, IATF 16949 Compliant Systems |
|
Service Scope |
OEM / ODM (Mold Design, Prototype, Mass Production) |
FAQ
Q: What types of AC plastic components can you manufacture?
A: We manufacture a wide range of injection molded AC parts, including housings, covers, fan components, brackets, air guides, sensor holders, PCB covers, and other customized plastic components.
Q: Can you manufacture parts based on our existing drawings?
A: Yes. We can produce components according to customer-provided 2D drawings, 3D CAD files (.STEP, .IGES, etc.), samples, or product concepts.
Q: What materials are commonly used for AC plastic parts?
A: Common materials include ABS, PC+ABS, PP, PA, and flame-retardant engineering plastics. The final material selection depends on your structural strength, operating temperature, safety, and appearance requirements.
Q: Do you provide mold manufacturing services?
A: Yes. We provide complete in-house or managed mold development services, including mold design, CNC machining, EDM processing, trial molding (T1/T2), and mold optimization.
Q: What is your quality control process?
A: We inspect materials, molds, molded parts, and finished products through multiple rigorous production stages. Inspection methods include appearance checks, dimensional measurement via CMM, and assembly verification.
